Description
High-Speed Printing

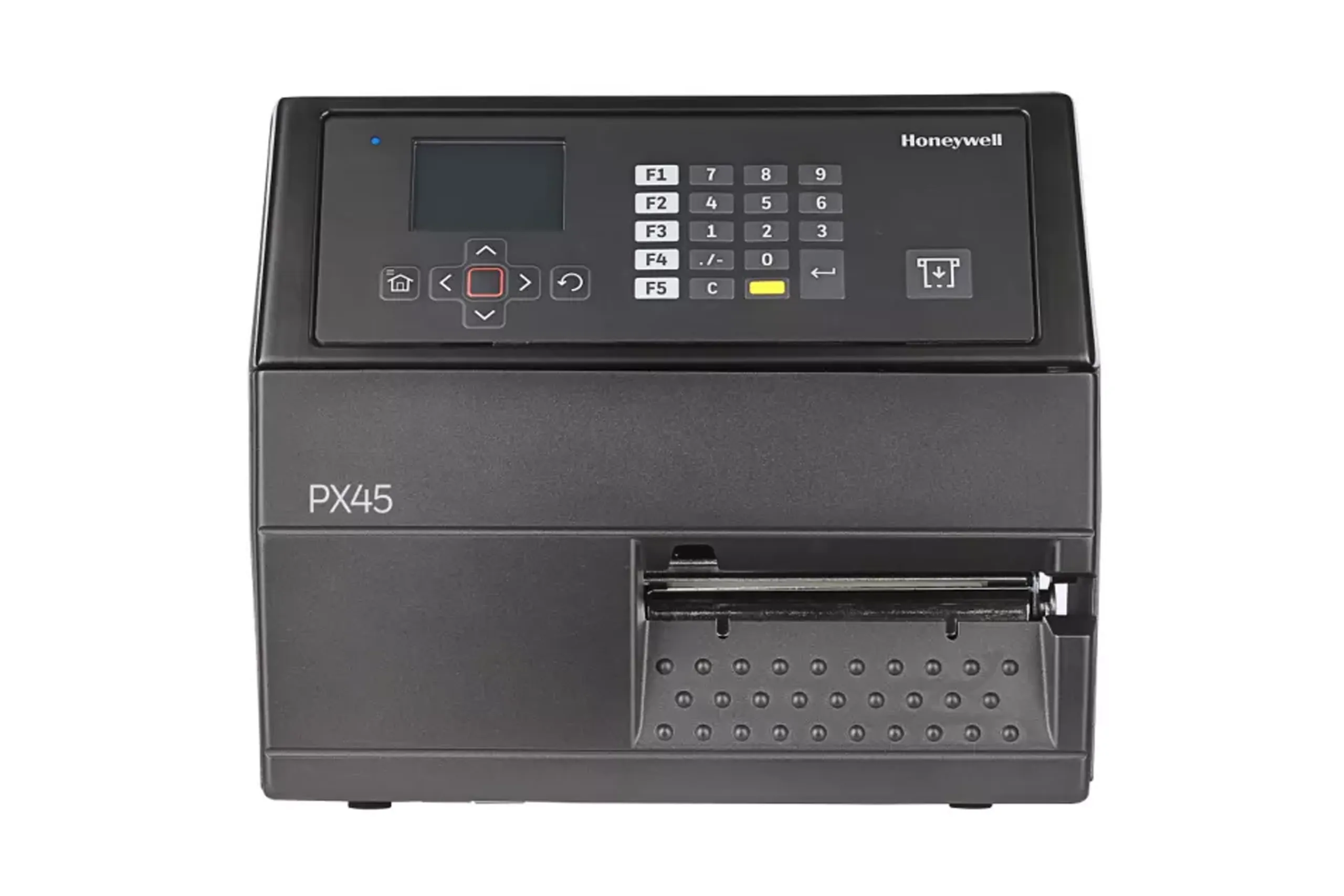

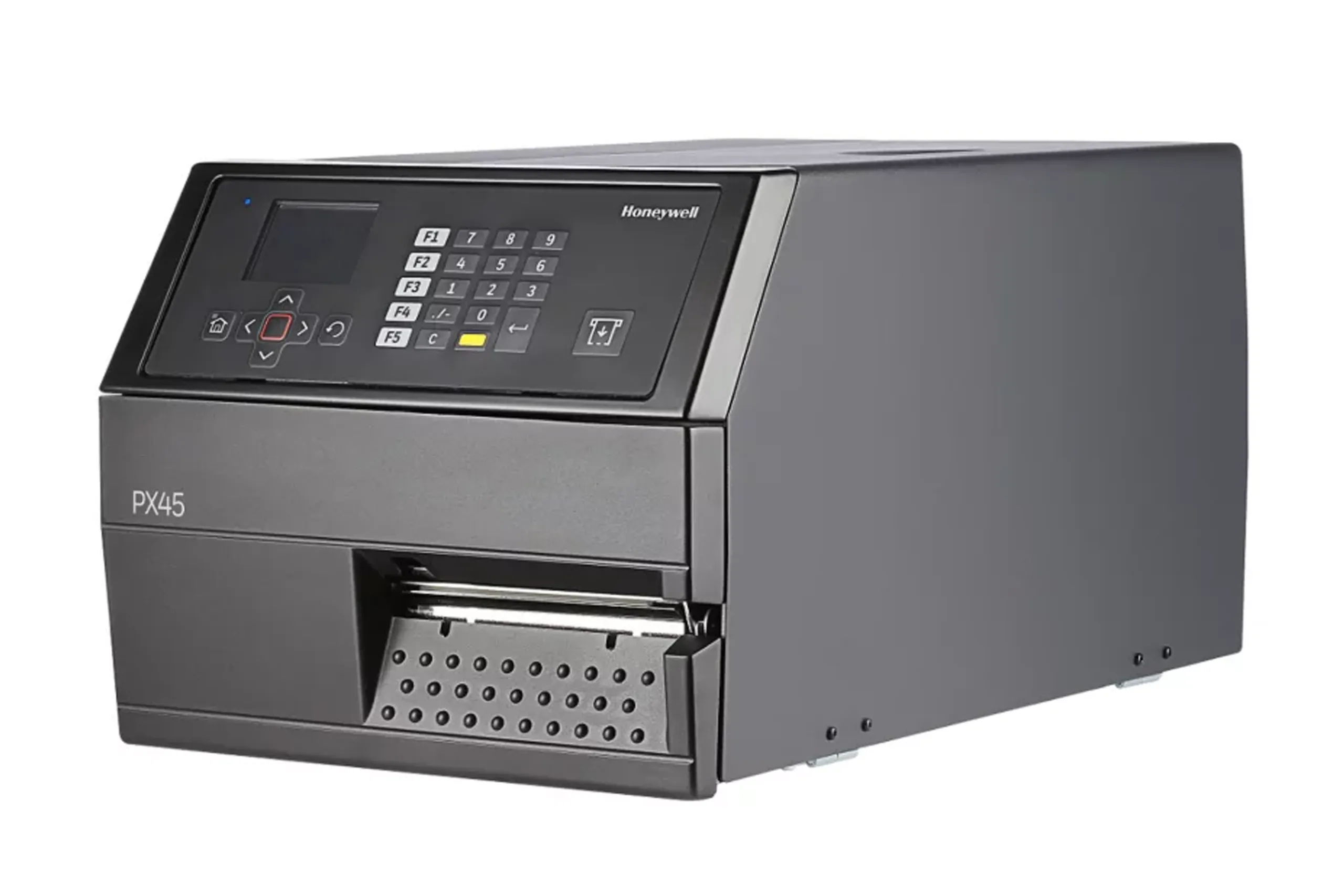

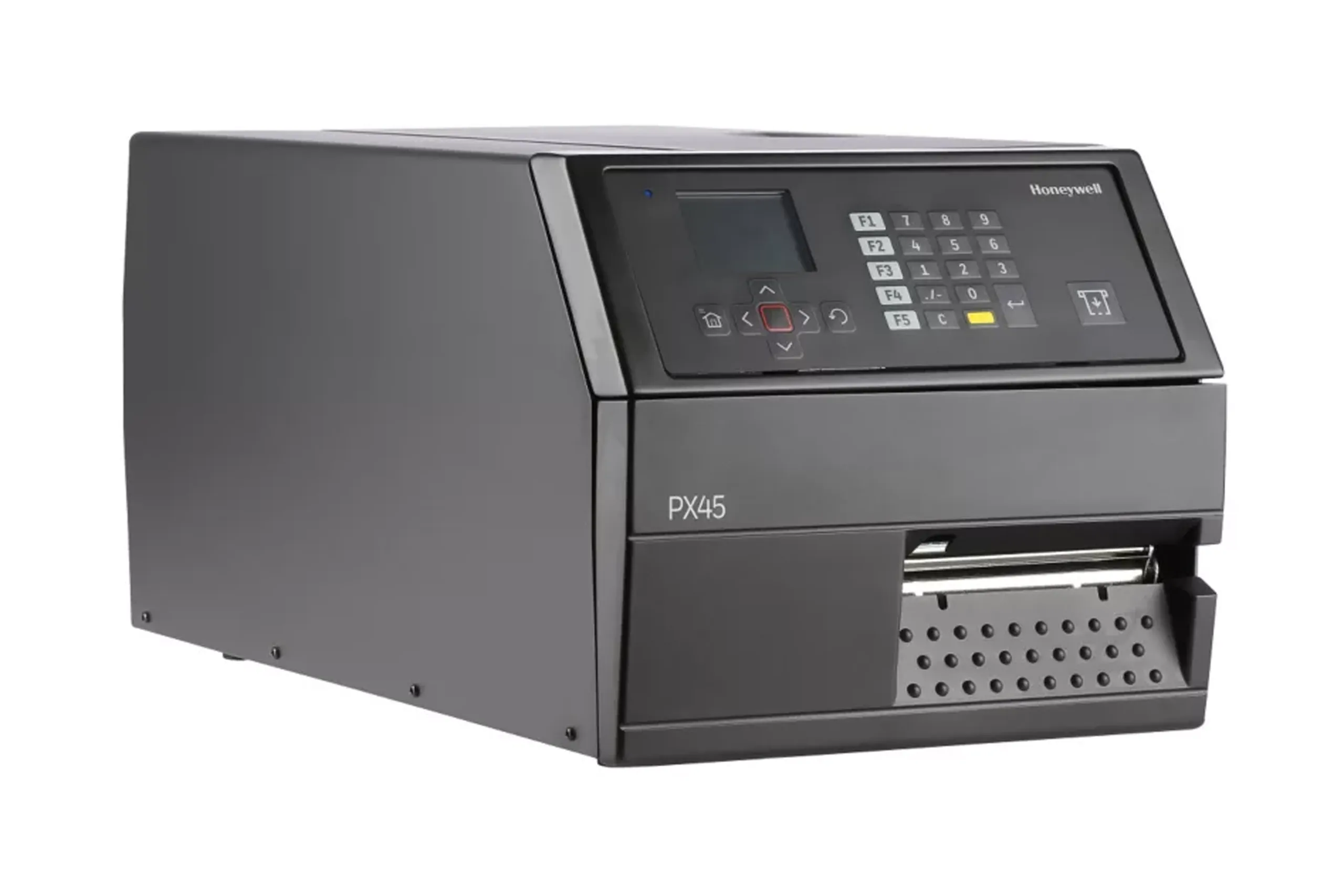

The all-metal PX45 and PX65 printers deliver exceptional performance, printing at speeds of up to 12 inches per second from the first label to the last. Available in 203, 300, and 406 dpi resolutions (PX45 only), these printers ensure precision labeling without sacrificing speed—perfect for compliance labeling tasks requiring immediate results.
Smart Design for Enhanced Productivity
Designed for demanding environments, the PX45 and PX65 function as Smart Printers capable of hosting standalone applications built with Fingerprint and C# programming languages. This capability minimizes errors and streamlines operational processes, enhancing overall productivity.
Advanced Device Management
Simplifying deployment and reducing downtime, the printers come equipped with web-based PrintSet 5 Configuration Management, mobile device configuration via PrintSet MC, and cloud-based Operational Intelligence. These tools empower users to manage device settings efficiently.
Easy Maintenance
With an innovative magnetic QuickMount™ printhead design, replacing printheads is quick and hassle-free. The PX45 and PX65 printers are co-engineered and tested with Honeywell labels and media, optimizing performance when used with genuine Honeywell products.
Reliable and Efficient
Engineered for robustness and reliability, the PX45 and PX65 printers minimize maintenance costs while maximizing productivity in any tough application.
Applications & Compatibility
Compatible Software
- BarTender
- Nicelabel
- Operational Intelligence
- SOTI Connect
- Teklynx Labelview
Application
- DC/Warehouse
- Healthcare
- Manufacturing
Technical Specifications
Compatible Drivers
- CUPS Driver for Linux
- Certified Device Types for SAP
- InterDriver Windows
Downloadable Font Type
- Bitmap Font
- OpenType Font (TrueType based)
- TrueType Font
Linear Barcodes
- All major 1D barcodes
Print Speeds
- 100–300mm/s (4–12 ips)
Print Method
- Direct Thermal
- Thermal Transfer
Resolutions
- 203 dpi
- 300 dpi
- 406 dpi
Printer Media Type
- Label
- Linered
- RFID
Wireless Communication
- IEEE 802.11 a/b/g/n/ac
- WEP, WPA, WPA2, 802.11x (EAPTTLS,LEAP, PEAP, FAST)
- Wi-Fi Certified
Printer Command Language
- C# Smart Printing
- DPL
- Direct Protocol (DP)
- Fingerprint (FP)
- Intermec Printer Language (IPL)
- XML-enabled for SAP AII and Oracle WMS
- ZSim2 (ZPL-II)
Memory
- External Multi-GB USB memory device (FAT16/FAT32)
Image File Format
- BMP
- GIF
- PCX
- PNG
Flash Memory
- 512 MB
RAM Memory
- 256 MB
Printer Connection Interface
-
Industrial Interface: 8 digital in/out
- Parallel: IEEE 1284
- RS-232, up to 115.2 KB/s
- USB 2.0 Device High Speed
- USB 2.0 Host High Speed
Operating Frequency
- 45 - 65 Hz
Network Specifications
- Ethernet 10/100 Mbps
RFID Specifications
- RFID
Font Engine
- Monotype Font Engine
- WTLE for global language support
Platform
- Honeywell Printer Edge
Features
Features
- Compact Size
- Seamless Connectivity
2D Barcodes
- All major 2D barcodes
Dimensions & Weight
Overall Dimensions
- L x H x W: 482mm x 238mm x 275mm (19.0 in x 9.4 in x 10.8 in)
Overall Dimensions
- L x H x W: 482mm x 238mm x 275mm (19.0 in x 9.4 in x 10.8 in)
Weight range
- 14.1 kg (31.12 lbs)
Maximum Media Roll Diameter
- 213 mm / 8.38 in
Electrical Specifications
Operating Voltage
- 100 - 240 V AC
Operating Characteristics
Operating Temperature
- +5°C to +40°C / +41°F to +104°F
Storage Humidity
- 20 - 80 % non-condensing
Operating Humidity
- 20 - 80 % non-condensing
Storage Temperature
- -20°C to +70°C (-4°F to +152°F)
Overview
Warranty Duration
- One year factory warranty
Others
Print Technology
- Thermal Transfer
Print Resolution
- 203 dpi
- 300 dpi
- 406 dpi
Print Volume
- Up to 10,000
Connectivity
- Ethernet
- Wi-Fi
Print Width
- 4 inch
Industry
- Logistics & Warehouses
- Manufacturing
