Description
Tailored for Today’s Challenges

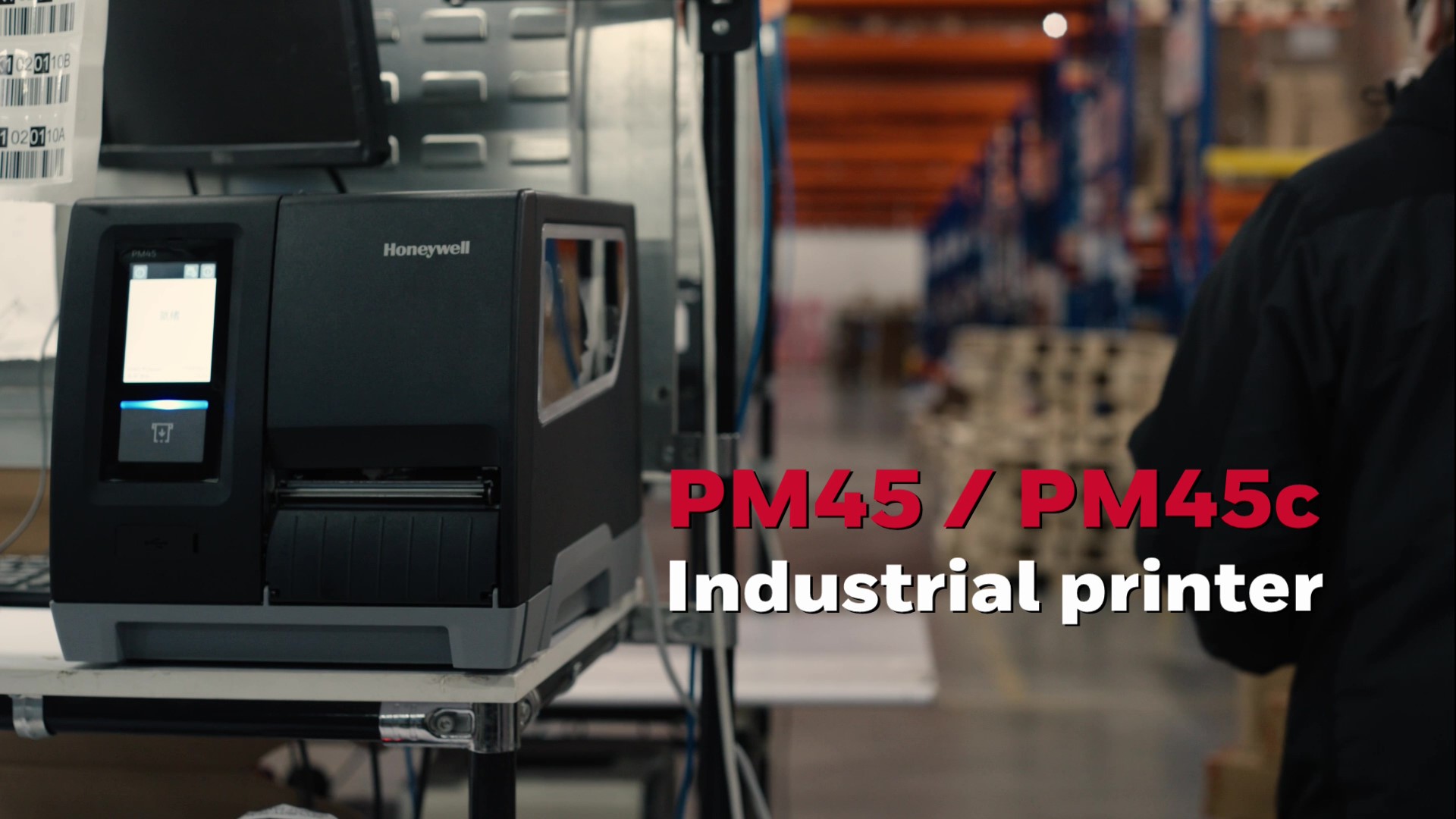

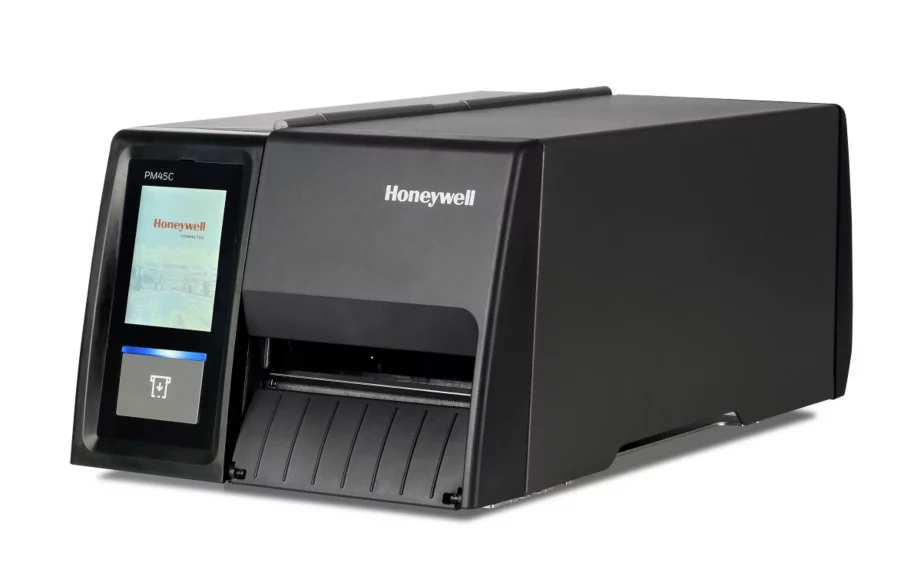

The Honeywell PM45 industrial printer meets rising demands for production flexibility, inventory turnover, and cost control. With track-and-trace functionality, it enhances printing efficiency and supply chain transparency across various industries, including food and beverage, pharmaceuticals, and manufacturing.
Superior Printing Performance
Built on the Honeywell print platform, the PM45 achieves speeds of up to 14 inches per second and a print registration of ±0.5 mm, ensuring high-quality prints for barcodes, text, and images—including small labels for electronics and medical devices.
Seamless Connectivity
Smart Integration
Designed for intelligent manufacturing, the PM45 supports multiple network protocols and print languages. Honeywell’s Smart Parse software enables quick label design adjustments, while Operational Intelligence allows for remote performance monitoring.
Maintenance Made Easy
Supporting various media types, including ink-in and ink-out ribbons with a 1-inch core size, the PM45 maximizes uptime. Its rugged all-metal mechanism and tool-free printhead replacement ensure reliability in demanding environments.
Features
Features
- Accurate & reliable high speed printing
- Broad connectivity options
2D Barcodes
- All major 2D barcodes
Applications & Compatibility
Compatible Software
- BarTender
- Nicelabel
- Operational Intelligence
- SOTI Connect
- Teklynx Labelview
Application
- Food and beverage
- Healthcare
- Warehouse and distribution center
Technical Specifications
Compatible Drivers
- CUPS Driver for Linux
- Certified Device Types for SAP
- InterDriver Windows
Resolutions
- 203 dpi
- 300 dpi
- 406 dpi
- 600 dpi
Print Speeds
- 50-350mm/s (2-14 ips)
Print Speeds
- Direct Thermal
- Thermal Transfer
Linear Barcodes
- All major 1D barcodes
Downloadable Font Type
- Bitmap Font
- OpenType Font (TrueType based)
- TrueType Font
Printer Media Type
- Label
- Linered
- RFID
- Tag
Wireless Communication
- IEEE 802.11 a/b/g/n/ac
- TLS, PEAP, TTLS, PWD, LEAP, FAST
- WWAN Radio
- Wi-Fi Certified
Printer Command Language
- C# Smart Printing
- DPL
- Direct Protocol (DP)
- Fingerprint (FP)
- Intermec Printer Language (IPL)
- XML-enabled for SAP AII and Oracle WMS
- ZSim2 (ZPL-II)
RAM Memory
- 256 MB
Memory
- External Multi-GB USB memory device (FAT16/FAT32)
Image File Format
- BMP
- GIF
- PCX
- PNG
Flash Memory
- 512 MB
Printer Connection Interface
- Applicator Interface
- Industrial interface
- Parallel Interface (IEEE 1284)
- RFID
- RS-232
- USB 2.0 Host (x2 PM45, x1 PM45C)
Operating Frequency
- 50 - 60 Hz
RFID Specifications
- RFID
Platform
- Honeywell Printer Edge
Network Specifications
- Ethernet 10/100 Mbps
Font Engine
- Monotype Font Engine
- WTLE for Global Language Support
Bluetooth Specifications
- Bluetooth Classic 5.0
2D Barcodes
- All major 2D barcodes
Dimensions & Weight
Overall Dimensions
- PM45: L x H x W: 483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in)
- PM45c with Mega Door: L x H x W: 500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in)
- PM45c: L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in)
Maximum Ribbon Length
- 450 m (1476 ft)
Weight
- PM45: 13.2 kg (29.1lbs)
Maximum Media Roll Diameter
- 213 mm (8.38 in)
Electrical Specifications
Operating Voltage
- AC Voltage: 100 to 240V AC, 50 to 60 Hz
Operating Characteristics
Operating Temperature
- +41°F to +104°F
- +5°C to +40°C
Storage Humidity
- 5 - 90 % non-condensing
Operating Humidity
- 20 - 85 % non-condensing
Storage Temperature
- -20°C to +70°C (-4°F to +152°F)
Overview
Warranty Duration
- One year factory warranty
Others
Print Technology
- Direct Thermal
- Thermal Transfer
Print Resolution
- 203 dpi
- 300 dpi
- 406 dpi
- 600 dpi
Print Volume
- Up to 10,000
- Up to 5,000
Connectivity
- Ethernet
- Wi-Fi
Print Width
- 4 inch
Industry
- Aerospace
- Healthcare
- Logistics & Warehouses
- Manufacturing
